Fove_HmdAdjustmentData Struct Reference

Provide all the HMD positioning data needed to render the current state of the HMD adjustment process. More...

#include <FoveAPI.h>

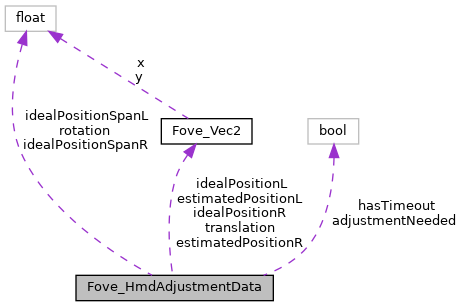

Collaboration diagram for Fove_HmdAdjustmentData:

Public Attributes
bool	adjustmentNeeded = false
	Indicate whether the HMD adjustment GUI should be displayed to correct user HMD alignment.
Fove_Vec2	estimatedPositionL = {}
	Pixel coordinate of left eye position which is independent on eye orientation.
Fove_Vec2	estimatedPositionR = {}
	Pixel coordinate of right eye position which is independent on eye orientation.
bool	hasTimeout = false
	Indicate if the adjustment process has timed out, in which case the GUI should close.
Fove_Vec2	idealPositionL = {}
	Pixel coordinate on the left camera image for the expected ideal eye position.
Fove_Vec2	idealPositionR = {}
	Pixel coordinate on the right camera image for the expected ideal eye position.
float	idealPositionSpanL = 0
	Radius of the tolerance area for the expected ideal eye position on the left camera image in pixels.
float	idealPositionSpanR = 0
	Radius of the tolerance area for the expected ideal eye position on the right camera image in pixels.
float	rotation = 0
	The rotation of HMD to the eye line in radian.
Fove_Vec2	translation = {}
	The HMD translation offset in eyes camera in relative units ([-1, 1])

Detailed Description

Provide all the HMD positioning data needed to render the current state of the HMD adjustment process.
