Fove_HmdAdjustmentData Struct Reference

Provide all the HMD positioning data needed to render the current state of the HMD adjustment process. More...

#include <FoveAPI.h>

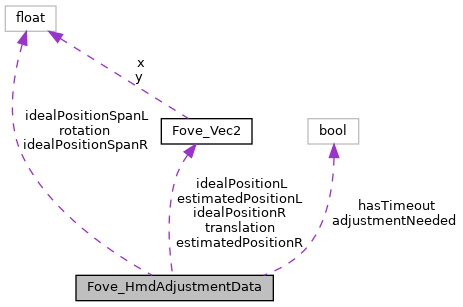

Collaboration diagram for Fove_HmdAdjustmentData:

Public Attributes
bool	adjustmentNeeded
	Indicate whether the HMD adjustment GUI should be displayed to correct user HMD alignment.
Fove_Vec2	estimatedPositionL
	Pixel coordinate of left eye position which is independent on eye orientation.
Fove_Vec2	estimatedPositionR
	Pixel coordinate of right eye position which is independent on eye orientation.
bool	hasTimeout
	Indicate if the adjustment process has timed out, in which case the GUI should close.
Fove_Vec2	idealPositionL
	Pixel coordinate on the left camera image for the expected ideal eye position.
Fove_Vec2	idealPositionR
	Pixel coordinate on the right camera image for the expected ideal eye position.
float	idealPositionSpanL
	Radius of the tolerance area for the expected ideal eye position on the left camera image in pixels.
float	idealPositionSpanR
	Radius of the tolerance area for the expected ideal eye position on the right camera image in pixels.
float	rotation
	The rotation of HMD to the eye line in radian.
Fove_Vec2	translation
	The HMD translation offset in eyes camera in relative units ([-1, 1])

Detailed Description

Provide all the HMD positioning data needed to render the current state of the HMD adjustment process.
